Model no.AT-T5F-1

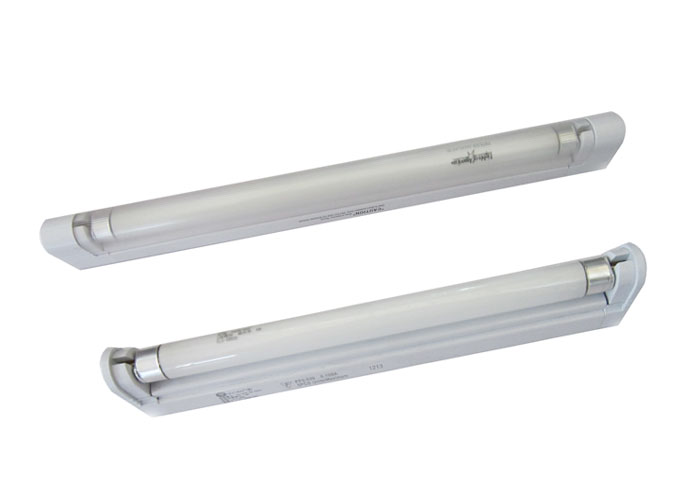

name  T5 Batten Fixture

                                Certificates: CE, RoHS, ENEC, GS, CB, UL

Product Advantage

The T5 Batten Fixture is upgraded from the T8 luminaries with slim design and occupies smaller spaces, which enables the modern design of architecture. This batten fixture series are featured with the linkable function, the fixtures are able to connect with each other via a cable connector.

Up to 45% energy saving over equivalent T8 lamps and more for T10 or T12 lamps;

At least 10% extra lumen output compared with T8, or T10, or T12 lamps;

>No flickers and better CRI;

Can be connected with each other to form a light band.

Product Feature

0.3mm Thick Aluminum Body Material, choice of white coated aluminum or luster, or matte;

PC Anti-flaming Lamp holder;

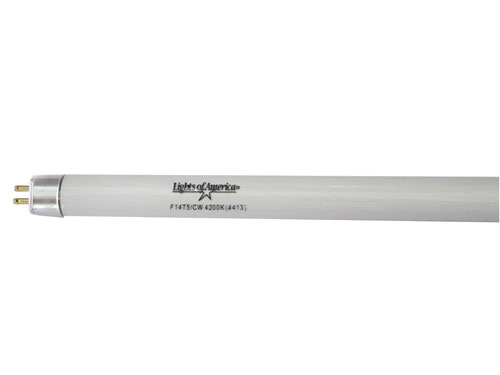

T5 Tri-phosphor Tube Included, choice of 10,000h or 20,000h;

Surface Mounted Installed;

Protection Class II;

Ballast Available:

<Voltage Choice Available:

220-240V, 50/60Hz

110-120V, 50/60Hz

Ballast Parameters Available:

Normal High Standard Ballast, PF≥0.95, THD≤30%, Life = 15,000 hours, Pass EMC and LVD Testing;

Normal Low Standard Ballast, PF≥0.55, THD≤130%, Life = 15,000hours, Pass EMC and LVD Testing;

Accessories:

1) One Cable Connector;

2) Two Aluminum Fixing Bracket;

3) Two Screws for Installation;

4) One Plastic End Cap;

5) One Plastic Connector;

6) One 1.5M Long Power Cord, or as per your request;

Packing:

One piece in one polybag;

One polybag in a individual carton

30pcs in a master carton

Product Details:

The fixture working under temperature of 50℃ cannot go over five hours for safety issues.

For safety issue, the electricity wire for 35W continuous connection 10pcs is 2*0.7mm², for others it is 2*0.5mm², both double insulated.

For safety issue, the electricity wire for 80W continuous connection 10pcs is 2*0.7mm², for others it is 2*0.5mm², both double insulated.
